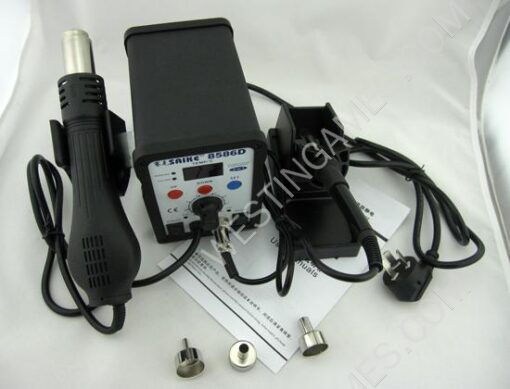

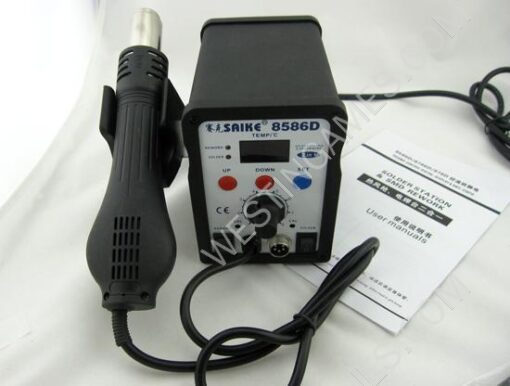

Saike 8586D 2 in 1 220V BGA SMD Rework Solder Station with Hot Air Gun & Soldering Iron
0+ PCS
30+ PCS
Negotiable
100+ PCS
100+ PCS
Features:
– Air gun made of imported heating wire heating element skeleton, long life.
– Air gun using the latest technology from energy, wind gun grip handle, the system immediately enter the work mode, into the frame, it goes into standby mode.
– Brushless fan soft wind, low noise.
– Handle into the frame, goes into standby, the system blowing cold air to disperse the heat, heater protection, and enhance life.
Air gun part

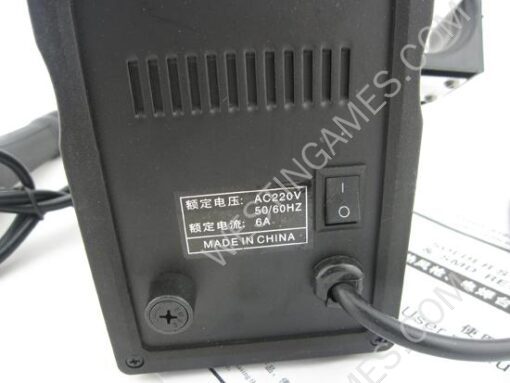

Operating voltage: AC 220V 50HZ
Power Consumption: 700W
Power Consumption: 700W
Airflow type: brushless fan soft air
Temperature adjustment range : 100 ℃ -480 ℃
Temperature adjustment range : 100 ℃ -480 ℃
Temperature stability : ± 1 ℃
Air flow : 120 l / min (maximum)
Air flow : 120 l / min (maximum)
Display format : LED digital display
Noise: less than 45db
Noise: less than 45db
The handle assembly length: ≥ 120cm
Dimensions: 157x185x135mm
Dimensions: 157x185x135mm

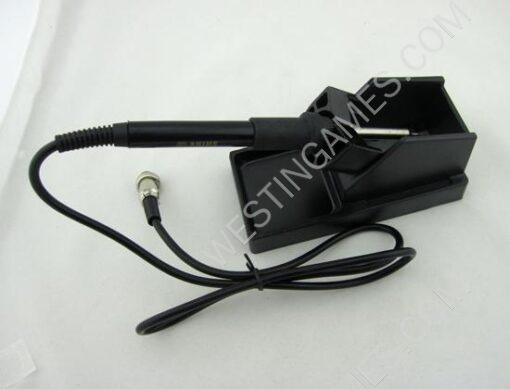

Iron part
Operating voltage： AC 220V 50HZ
Output Voltage： AC 24V
Output Voltage： AC 24V
Maximum power： 50W
Temperature Range： 200 ℃ -480 ℃
Temperature Range： 200 ℃ -480 ℃
Display format： LED digital display
Heater heating element： A1322 ceramic
Heater heating element： A1322 ceramic
Temperature stability： ± 2 ℃ (no load)
Handle length ≧ 100cm
Handle length ≧ 100cm
Tip to ground resistance： <2Ω
Tip to ground potential： <2mV
Tip to ground potential： <2mV
Quick Installation Guide
1, the installation
When a new machine for the first time, you must install the hot air gun handle bracket. Depending on your choice, remove the machine left or right of the two fixing screw holes, remove the two screws tight election. The handle assembly resting on the handle bracket, check whether it is appropriate.
2, the power
Power, both for the case of an open, non-digital display in two heating switch, any way the heating switch is closed digital displays the status of the road.
3, the switch function automatically checks the brightest
Automatically checks the brightest switch function (ie: when the only way to open, switch key automatic identification, display status can not switch).

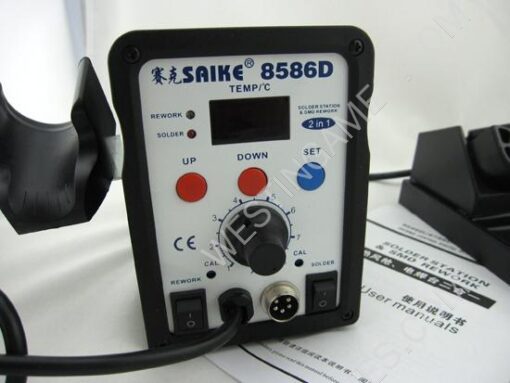

4, light color display air gun / iron work status
Light color display air gun / iron working status, namely: LED indicator tube is blue, the air gun to display the working status; luminous indicator tube is red, which means that the display iron working condition.
5, the working
Open the heating switch, digital temperature display settings immediately; while the channel display shows the temperature directed into the actual working condition.
6, to stop working
Turn off heat switch current work, the way to stop heating. If the status is displayed before working condition of the road, at this point shows another way of working status (when another road work) or standby state of the road (the other way standby).
7, shutdown
After using hot air, hot air gun handle set aside handle frame, until the hot air down to sleep, hot air heated in the off switch. This will greatly extend the life of hot air soldering station. If the work is not required when the machine, turn off the heating switch
8, the digital display state transitions
In the energized state transitions between press "SET" key two-way, while the road display lights up.
Item:
1* Saike 8586D 2 in 1 220V BGA SMD Rework Solder Station with Hot Air Gun & Soldering Iron
| Weight | 2.49 kg |
|---|---|
| Dimensions | 26.5 × 17.0 × 15.5 cm |
