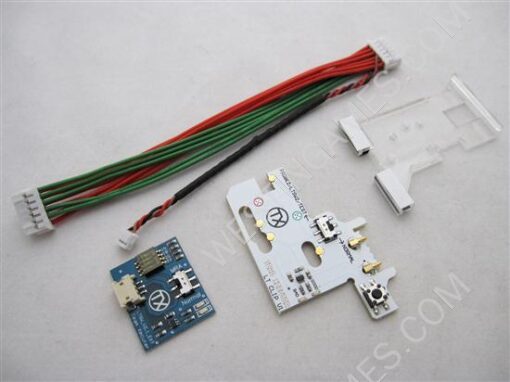

Xecuter LT Clip & LT Switch v2.1 Solderless Flashing Tool for XBOX360

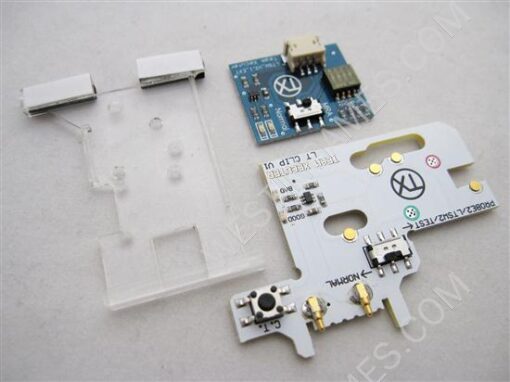

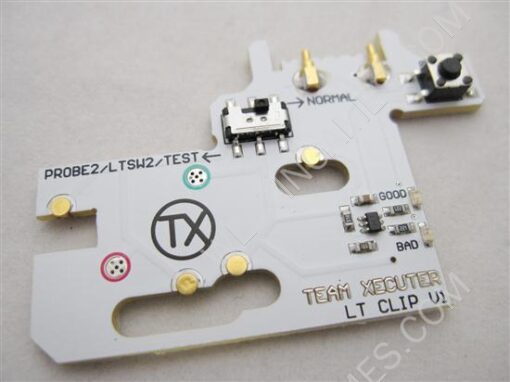

Installation is simple. Make 3 trace cuts (The same as LT Switch v1.X), fit the LT Clip PCB to the Liteon PCB and use the continuity test button to make sure your cuts are correct (Green LED = Good, Red LED = bad). Once you have a Green LED you then fit the specially designed clip to fix the PCB in place. That’s it !

The LT Clip can be used with either the new LT Switch v2 or the CK3 Probe II.

– If you are skilled and can solder then you can use the LT Switch v1.5
– If you are a multiple modder who can solder but wants to be fast and cost effective then you have the CK3 Probe II
– If you are a beginner who has no soldering skills or equipment, doesn’t want to buy or use conductive glue and doesn’t want the expense to post their console to someone for modding – then the LT Clip solution is perfect for you.

Features:
– Unique designed clip
– No Solder & No Glue

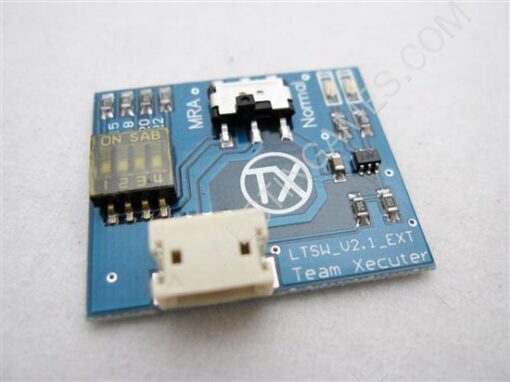

– External LT Switch
– Built in continuity tester to make sure your trace cuts are perfect
– Enables Read/Write on ALL Liteon 74850, 83850, 93450 DVD Drives
– Easy & Simple Install – Install Once & Forget
– Enable / Disable Switch
– Multi-R Switch (15, 18, 20, 22 Ohms)
– On/Off LED
– Completely Undetectable
– Requires Xecuter CK3 Pro or Xecuter CK3 Lite to connect the LT Switch to the Liteon DVD Drive
– No Need To Uninstall
– Works with ALL tools including the latest Jungle Flasher
