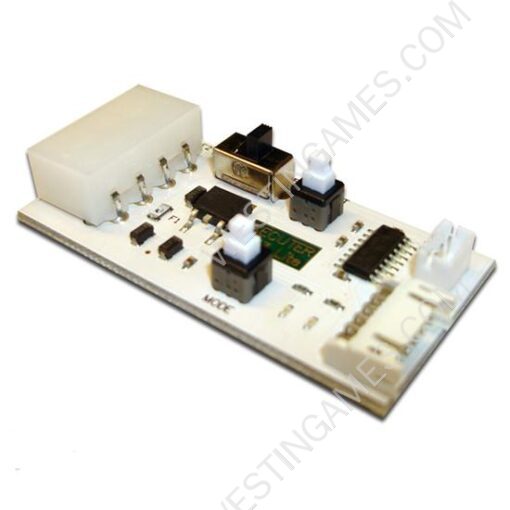

Xecuter CK3 Lite for XBOX360

Xecuter CK3 Lite for XBOX360

Description:
The CK3 Lite is an Xbox 360 DVD drive adapter that enables you to connect ANY model to your PC and to repair / upgrade the firmware. 100& Supports ALL versions of Hitachi, Samsung, Benq and Liteon both Phat and Slim drives.

Team Xecuter developed the first ever Xbox 360 connectivity Kit back in 2006 and now we present the 3rd generation. The CK3 Lite is an Xbox 360 DVD drive adapter that enables you to connect ANY DVD model to your PC and to repair / upgrade the firmware or to replace your faulty drive. It also has the advantage of being able to connect your Xbox 360 DVD to your PC without having the fuss of moving all your equipment across rooms and dragging around that huge 360 power supply! As part of the CK3, advanced features such as a modeb debug mode which allows early Hitachi DVD drives to be recognized in Windows/Linux without any other hacks, RS232 support to enable the extraction of the drive key from the Liteon 74850C DVD Drive (required when using a Probe v1 / v2 – this is not needed with the new Probe v3) , built in power switch to be able to switch to vendor mode in Jungle Flasher (or other preferred apps) and an on-board eject switch. Comes complete with an RS232 serial cable.  The perfect Xbox 360 DVD repair / upgrade adapter for those on a budget.

Powers ALL versions of Hitachi, Samsung, Benq and Liteon both PHAT and SLIM.

Feature List:
Onboard RS232 Support (Liteon 74850C DVD Key Dump with Probe 1/2)
Supports CK3 Probe 3 for Liteon DG-16D2S DVD key extraction – all models – no cuts and no solder
Fully tested with the X360USB PRO
Compatible with all tools such as: JungleFlasher/ iPrep / dvdkey / dvdkey32 / firmware toolbox / Mode_B etc)
Powers ALL XBOX 360 DVD Drives (both Phat and Slim)
Mode-B on Hitachi 59 & Earlier (Hitachi 78/79 Mode-B via Jungle Flasher)
100% Compatible with all flashing tools inc Jungle Flasher
Onboard ON/OFF Switch (Perfect For Enabling Vendor Mode)
Self-Resetting PPTC Fuses To Prevent Damage If You Plug In The Power Cable Incorrectly
Onboard Eject Switch

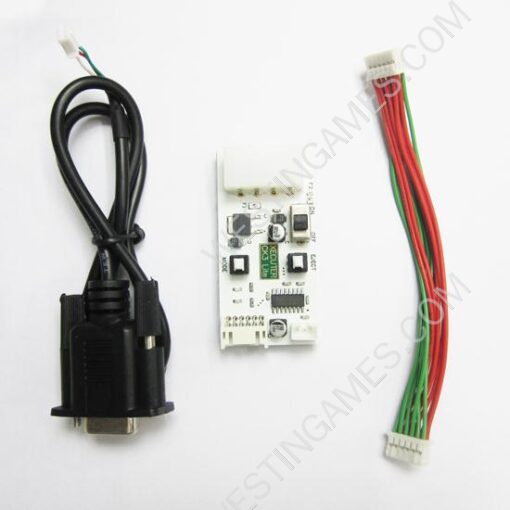

Includes RS232 Serial Cable
High Build Quality
Trusted Xecuter Design

Requirements:
X360USB PRO or Compatible SATA Card (recommend VIA 6421)
Jungle Flasher Software or preferred apps.
RS232 Serial Port (If using a Probe 1 or 2. Not required if using a Probe 3)
Good Quality Molex Power Supply
