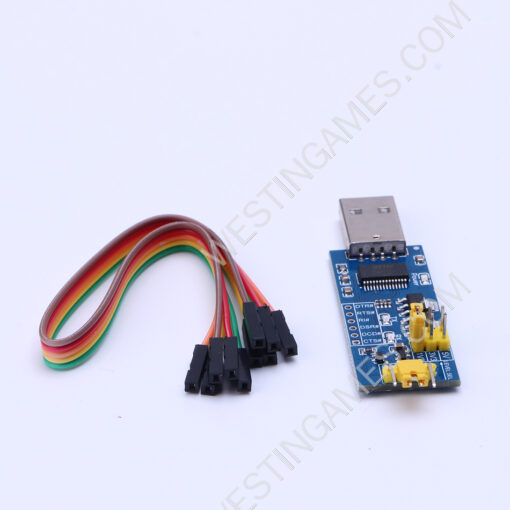

usb To Serial TTL Platelets 5V / 3.3V / 1.8V Level, Download Program Line Serial Interface Module FT232RL

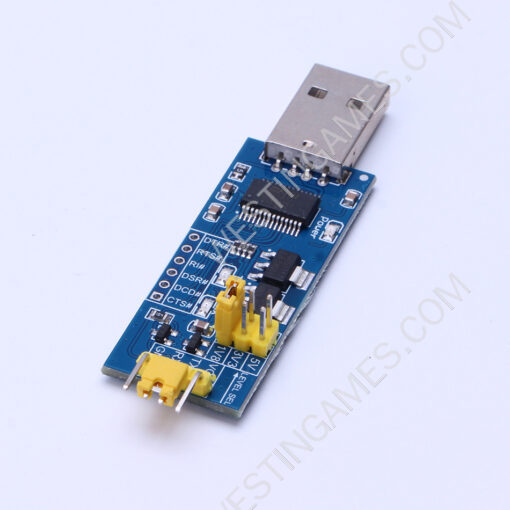

usb To Serial TTL Platelets 5V / 3.3V / 1.8V Level, Download Program Line Serial Interface Module FT232RL - Image 2

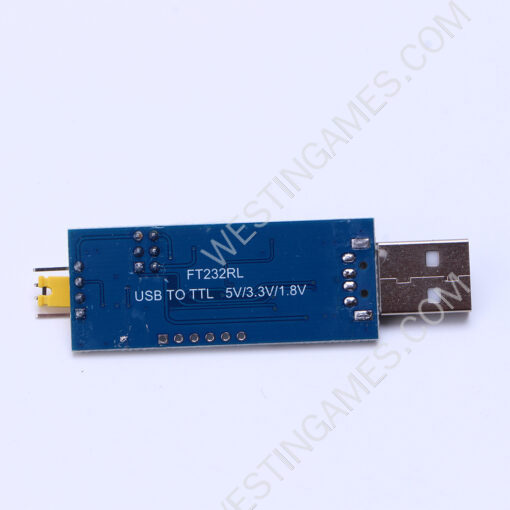

usb To Serial TTL Platelets 5V / 3.3V / 1.8V Level, Download Program Line Serial Interface Module FT232RL - Image 3

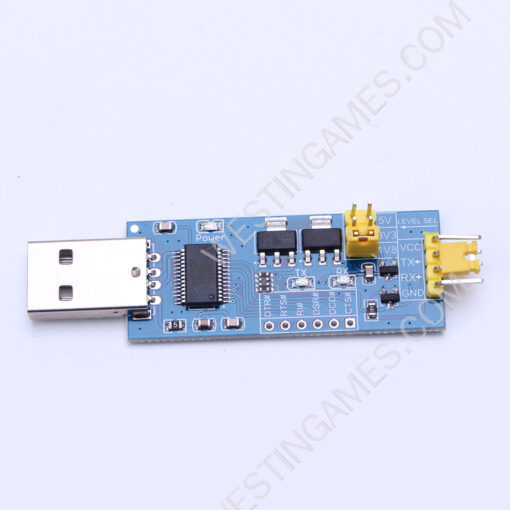

usb To Serial TTL Platelets 5V / 3.3V / 1.8V Level, Download Program Line Serial Interface Module FT232RL - Image 4

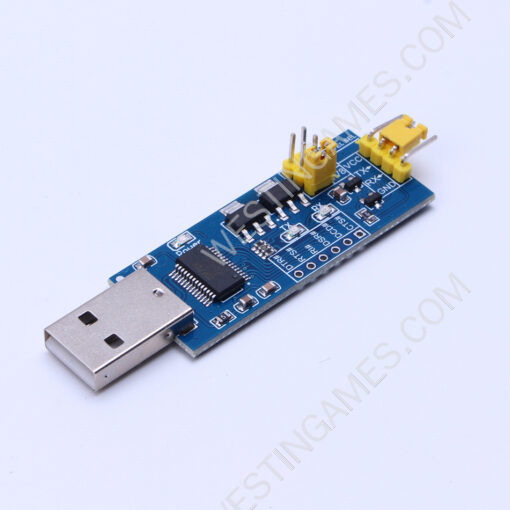

usb To Serial TTL Platelets 5V / 3.3V / 1.8V Level, Download Program Line Serial Interface Module FT232RL - Image 5

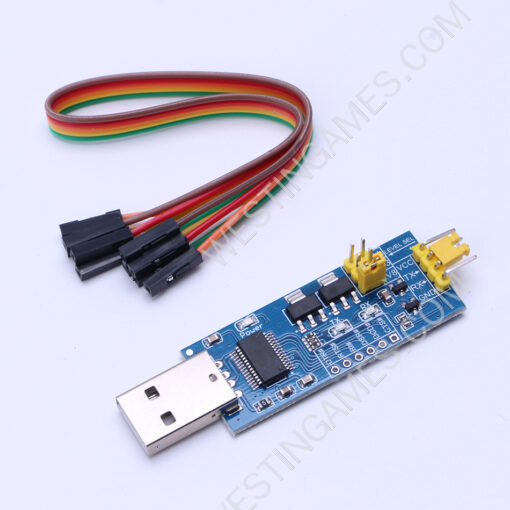

usb To Serial TTL Platelets 5V / 3.3V / 1.8V Level, Download Program Line Serial Interface Module FT232RL - Image 6

usb To Serial TTL Platelets 5V / 3.3V / 1.8V Level, Download Program Line Serial Interface Module FT232RL

Name: usb To Serial TTL Platelets 5V / 3.3V / 1.8V Level, Download Program Line Serial Interface Module FT232RL
SKU: HTPC0042
Availability: InStock

5+ PCS

200+ PCS

Negotiable
500+ PCS

Without brand logo, NeutralMade in china

SKU: HTPC0042 Category: PC Accessories

Description
Additional information

Description:

Original FT232RL main control chip, fast speed, good stability

Support Windows XP/WIN7/WIN8/WIN10 32/64 bit system.

Stable speed up to 3Mbps (3 times of 921600)

Power supply VCC and signal level (including flow control pins CTS/RTS/DTR/RI/DCD) can be freely switched in 5V/3.3V/1.8V, adapting to different voltage systems.

Integrated power (blue), receive (green), transmit (red) three indicators.

On-board 500mA self-recovery fuse, over-current/short-circuit automatic disconnection, effective protection of computer security

Strong power supply capacity, maximum output 500mA current, can drive most of the microcontroller system board.

Integrated protection diode, the signal line occasionally abnormal voltage will not damage the module

CTS/RTS/DSR/RI/DCD signal pins, can be convenient for hardware flow control

Small size, high degree of integration, PCB only 20 * 50mm, only takes up the width of a USB port, even if the USB port distance is very tight on the computer does not affect the insertion of other devices

Item:
usb To Serial TTL Platelets 5V / 3.3V / 1.8V Level, Download Program Line Serial Interface Module FT232RL

Weight	0.015 kg
Dimensions	12.0 × 6.5 × 1.5 cm
