Original Xecuter TX DGX v1.1S for XBOX360 Slim Console

Descriptoin:

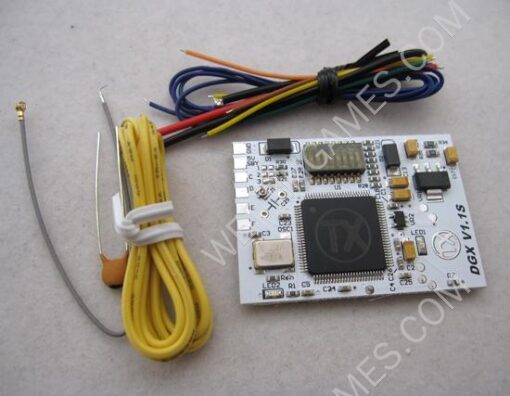

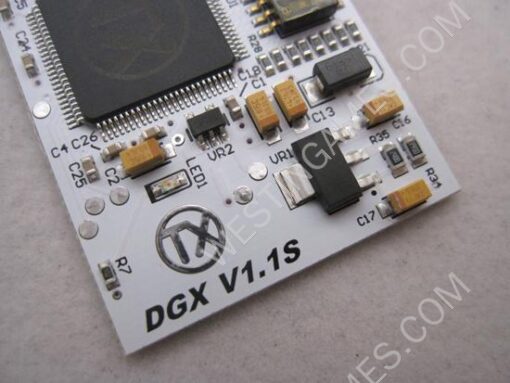

This is TX DGX V.1.1S

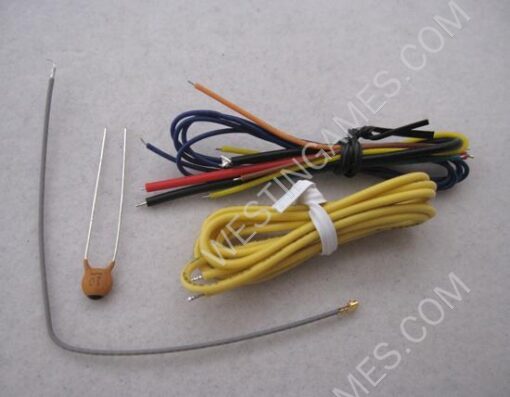

Added 70cm 24WG POST_OUT Wire
Added a ceramic cap option (Point C29) between D and GND (same as CR3 Pro) – included an optional 10pf ceramic cap
Added a selectable 5ohm and 10ohm resistor to post_out (simple solder jumpers 1 Closed: 10ohm, 2 Closed: 5ohm, 3 Closed: 0ohm Default)
Added a a grounded IPEX socket (Point J1) for CPU_RST (10cm IPEX cable included)
Larger solder pads and stronger vias (C D E F 5v GND)
Removed JTAG pin header (Programming is not required – some users tried to program their DGX and damaged it)
Optimized code for enhanced Trinity performance. DGX 1.1 would boot the worst Trinity we had in 30 seconds (v1.0 booted in 2 minutes)
My preferred settings for Trinity were: D: 10cm IPEX to R4D4, C: 70cm 24AWG Wire , 10pf Cap Installed, 0ohm (Default)
My preferred settings for Corona were: D: 10cm IPEX to C5R11, C: Default wire, No Cap Installed, 10ohm

——–

Lost your CPU Key or unable to extract it? The Team Xecuter DGX is what you need need.

The 2.0.15572 dashboard changed the way th console operates…and the CPU key can no longer be extracted from the console

The DGX will allow Slim consoles to have there Key extracted (we are pretty sure you also need a glitcher, like the Cr3Lite, but this is TBA)

– Easy backup of your motherboards CPU KEY !
– Compatible with ALL slim motherboard versions (v1, v2, v3 and v3 Corona, and Trinity)
– Compatible with ALL dashboard versions (tested up to 2.0.16202)
– Only 6 wires to solder

Features:
– Fast Recovery of CPU/DVD Key from 2.0.15572.0 – Tested on Trinity, Corona v1 & Corona v2 (4GB)
– Fast Recovery of CPU/DVD Key from 2.0.15574.0 – Tested on Trinity, Corona v1 & Corona v2 (4GB)
– Fast Recovery of CPU/DVD Key from 2.0.16197.0 – Tested on Trinity, Corona v1 & Corona v2 (4GB)

Item:
1* Original Xecuter TX DGX v1.1S for XBOX360 Slim Console
