Original SQUIRT BGA 1.2 RGH Corona Cool Runner for XBOX360 9.6A Console

Description:
SQUIRT 1.2 BGA BLACK NEW VERSION WITH RGH CORONA !
Already flash with 9.6A Programmer!

The changes from V1:
1- LED STATUS on board
2- Added 4 extra expansion pads for future uses (corona? )
3- GND & VCC pads now more easy to connect
4- 10KOhm resistor for DUAL NAND PULLUP integrated
5- Oscillator 48Mhz, no more CLK needed and READY FOR CORONA (only hardware)
6- Added 1Ohm resistor on CPU_RST for a more faster GLITCH on SLIM

Full integrated for DUAL NAND with "SQUIRT DUAL NAND 16 MBYTE PCB"

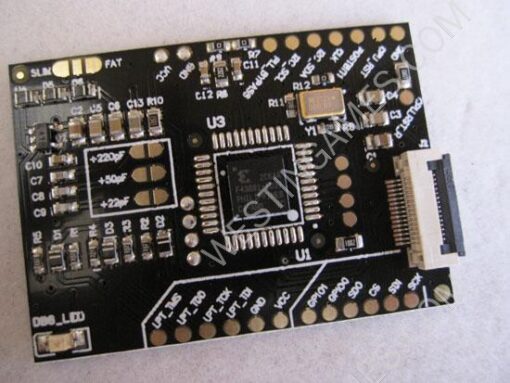

The SQUIRT 360 COOLRUNNER (only mainboard) specifications:

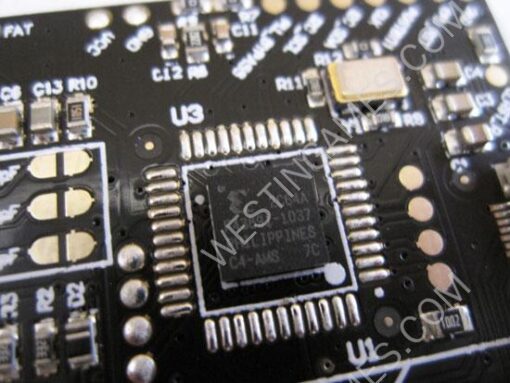

– Main IC "7VQG44C PLD COOLRUNNER XILINX" compatible with all GLITCH sources
– On board capacitators: 220pF / 270pF / 292pF with easy jumpers
– LPT circuit on board, just connect LPT port and program, no need extra tools

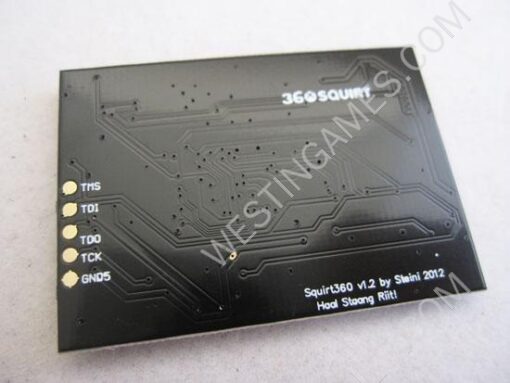

– JTAG Xilinx port on the back for an easy update with any JTAG programmer

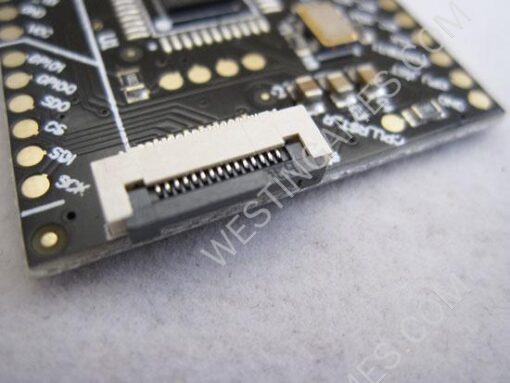

– SPI NAND pads connected to 40 cm FCC 15 PIN cable provided
– JTAG Xilinx port connected to 40 cm FCC 15 PIN cable provided
– 4 pads I/O connected to xilinx for future uses
– Plug and play JTAG & NAND programming with optional SQUIRT SLAVE PROGRAMMER

Package content:
1x SQUIRT COOL RUNNER
1x FCC CABLE 40 cm 15 pin to connect SQUIRT PROGRAMMER

Item:
1* Original SQUIRT BGA 1.2 RGH Corona Cool Runner for XBOX360 9.6A Console
