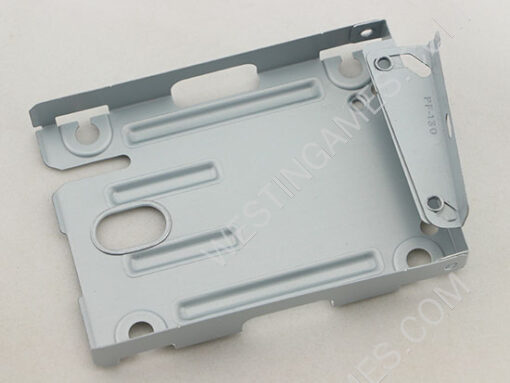

Hard Disk Drive Tray HDD Mounting Bracket for PS3 Super Slim CECH-400X (A Grade)
10+ PCS
300+ PCS
Negotiable
1000+ PCS
1000+ PCS
High Quality PS3 4000 12G Mounting Bracket with Screws
Description:
Sony PlayStation 3 Hard Disk Drive (HDD) Mounting Bracket for the PS3 Super Slim which is used to install an internal hard disk drive in the PS3™ system.If you have purchased the Playstation 3 SuperSlim 12gb model and wish to fit a hard drive then this mounting bracket is what is needed and a hard disk drive which you will need to purchase separately.
Features:
Compatible with 2.5in hard disk drive for PS3 system CECH-400x Series.
Super slim: convenient to use.
Special design for excellent heat dissipation.
Precautions:
To ensure the safe use of this products, carefully read this instruction manual, the
PS 3 instruction manual and the hard disk drive instruction manual hefore using
it and save the manuals for future reference. The parents or guardians of small
children should read the manual for them to ensure that they use this product
safely
Attaching the mounting bracket to the hard disk drive:
Attaching the mounting bracket to the hard disk drive:
The following types of hard disk drive may he used with the PS3 System
Size :2.5 inch/63.5 mm (Inlcrnct type)"
Interface format :Serial ATA’2
*1Proper operation is not guaranteed for al I models
*2 Parallel ATA is not supported
I.Place the hard disk drive in the mounting bracket.
I.Place the hard disk drive in the mounting bracket.
Ensure that the hard disk drive is oriented so that the connections on the hard disk drive can be
accessed from outside of the mounting bracket.
2.Hold the hard disk drive lightly and turn it upside down together with the mounting bracket.
Place it on a soft. dry cloth. Do not forcefully push down on the hard disk drive.
3.Attach the hard disk drive to the mounting bracket with sliser scresss.
While inserting the screws into the mounting bracket. keep the rubber inserts over the mounting
bracket’s screw holes.
Specifications:
Material: metal
Color: silver
External dimensions (Width x height x depth) :Approx. 75 x 27 x 103 mm
Weight :Approx. 49g
Operating ens ironmental :5’C-35t
Operating ens ironmental :5’C-35t

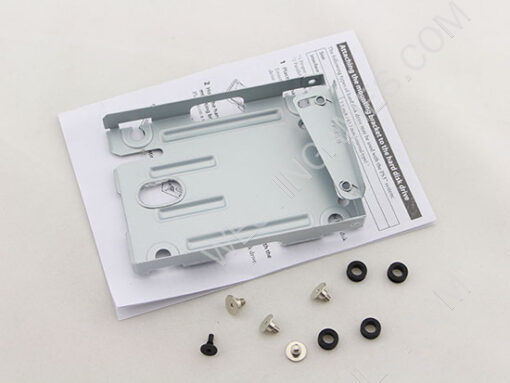

Item Includet:
1 * Mounting bracket (not include hard disk drive)
1 * screws kit
Note:

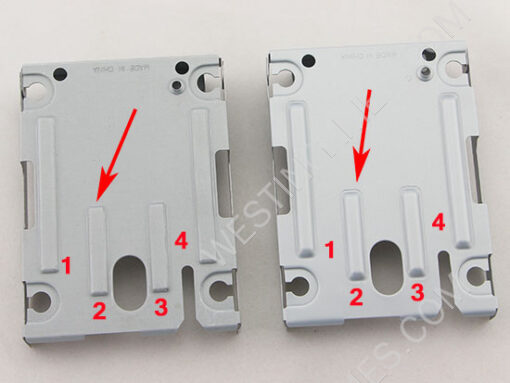

This item is the picture of the right,it is OEM high quality and work same like original.
Item:
1* Hard Disk Drive Tray HDD Mounting Bracket for PS3 Super Slim CECH-400X (A Grade)
| Weight | 0.07 kg |
|---|---|
| Dimensions | 12.0 × 9.2 × 3.2 cm |
