Euroquartz 48.000MHZ Oscillator Crystal 9.6A RGH Corona for TX Coolrunner Upgrade

Euroquartz 48.000MHZ Oscillator Crystal 9.6A RGH Corona for TX Coolrunner Upgrade

Description:

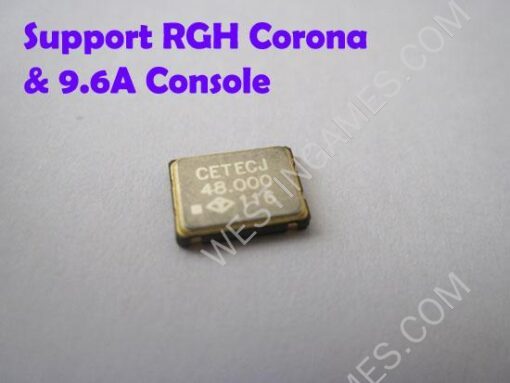

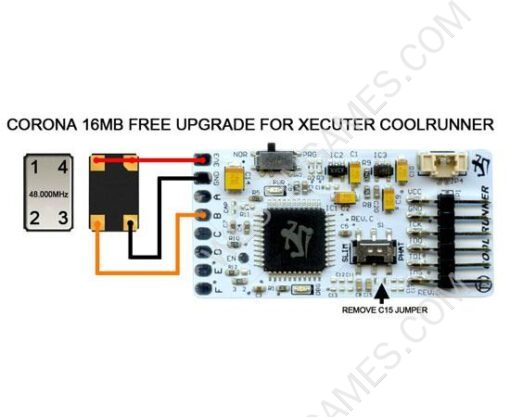

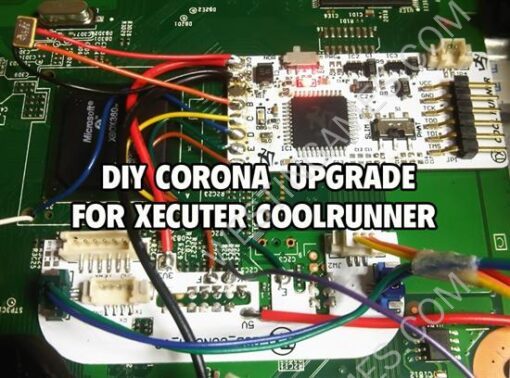

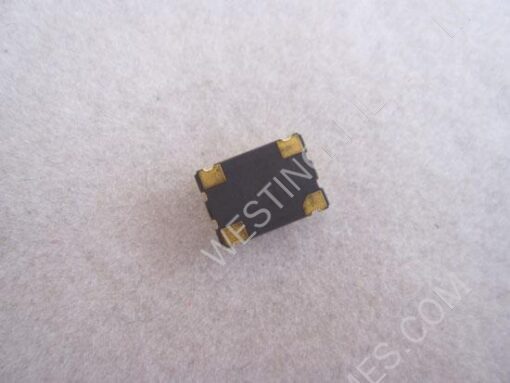

We have sourced the exact Crystal Oscillator by EUROQUARTZ needed to upgrade your Coolrunner Rev-A,B,C for Corona Support.

This is the exact same product that TX recommends, not some cheap alternative!

DOWNLOAD PDF SPECIFICATIONS:
 Dimensions : 5 x 3.2 x 1mm
 Frequency Ageing : ±5 ppm/yr
 Frequency Stability  : ±50ppm
 Height : 1mm
 Length : 5mm
 Load Capacitance  : 15pF
 Maximum Operating Temperature  : +85 °C
 Maximum Symmetry : 55%
 Minimum Operating Temperature : -40 °C
 Mounting Type : Surface Mount
 Output Frequency : 48 MHz
 Output Level : HCMOS, LSTTL
 Package Type : SMD
 Pin Count  : 4
 Width  : 3.2mm

Package Contents:
 x1 Euroquartz 48.000MHZ Oscillator

Item:
1* Euroquartz 48.000MHZ Oscillator Crystal 9.6A RGH Corona for TX Coolrunner Upgrade
