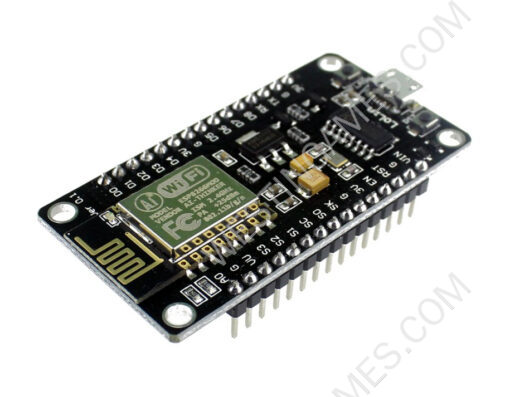

ESP-12 Lua Nodemcu Chip WIFI Dev Board Internet Of Things with ESP8266 CH-340 for PS4 hack 4.55
5+ PCS
200+ PCS
Negotiable
500+ PCS
500+ PCS
Normal Version
Benefits of using the ESP8266:
– Extremely low cost hardware, available worldwide
– Ability to run 24/7 via USB, self-hosted payload, no external apps or programs required
– Completely block all updates
– No need for custom DNS server or settings, features automatic redirect
– Easy to program and update via USB
– Very low power consumption
Requirements:
esptool.py
ESP8266 Wifi Module with at least 4M flash
PS4 Firmware 4.55 or 4.05
esphost.bin or esphostmulti.bin or esphostmulti405.bin
Features:
– Arduino-like hardware IO: Board is based on open source firmware NodeMCU which is an advanced API for hardware IO. It dramatically reduces the redundant work for configuring and manipulating hardware. The board allows you to code like Arduino in an interactive manner with the Lua scripting language.
– NodeJS style network API: The firmware provides event-driven API for network applications, which facilitates developers writing code running this tiny little board in NodeJS style. Greatly speed up your wifi / IOT application developing process.
– Lowest cost WIFI development tool: With very economical price point, this is extremely easy to prototype development kit in breadboard friendly form-factor and everything required on board.
– Reprogramming possibility: IO button available on the kit also functions as a re-flashing button for the wifi module. This means you can re-flash the module with latest firmware; which could be either nodemcu firmware or standard AT command set firmware.
– Multiple uses: This development kit not only can be used for wifi development but can also be used as a simple USB to serial converter as well as LiPo battery charger on stand-alone basis. This means, you get functionality of 3 into one.
– Use directly in your application: This board has been carefully designed by keeping end user application in mind and thus comes with ready to use capability, out of the box.
Specification:

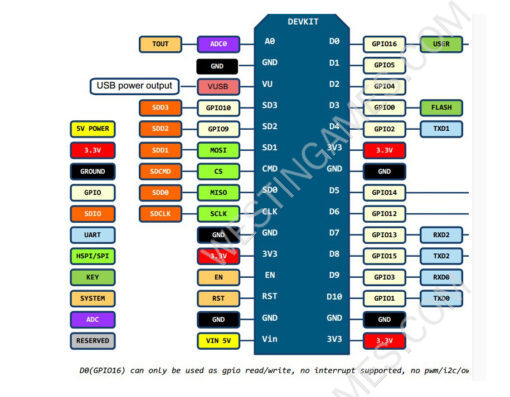

One ADC input and 8 digital IOs; all digital IOs could be used as I2C, PWM, Input, Output or Interrupt
One ADC input and 8 digital IOs; all digital IOs could be used as I2C, PWM, Input, Output or Interrupt
3.3V operation, can be directly powered from USB, no separate power supply needed
Compact size: 25.4mm x 50.8mm (2" x 1") Double sided PCB with robust and compact assembly
Provision for external battery along with on/off switch
Item:
1* ESP-12 Lua Nodemcu Chip WIFI Dev Board Internet Of Things with ESP8266 CH-340 for PS4 hack 4.55
| Weight | 0.04 kg |
|---|
